Since
some hard drives, when attached to the SDL, will not be
recognized when connected to native SATA ports on some PC’s,
ICS recommends the use of the E-SATA controller card to ensure
100% compatibility with both the PC and the drive connected to
the SDL. Besides guaranteed drive detection the E-SATA
controller supports “hot swap”.

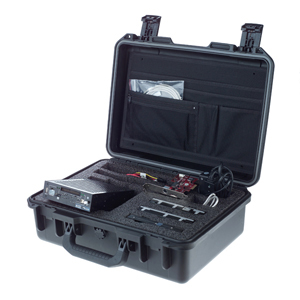

The Super DriveLock eSATA Express Kit includes the basic Super
DriveLock Without SCSI Kit as well as an external Power Supply,
USB-to-S-ATA Adapter, eSATA PCI Express Controller Card and a
Hard Case
Prices in $ are for
purchase and delivery within the USA only.
For international sales please
contact our Distributors world wide and they will be happy to
quote and support your ICS products.
The
Super DriveLock is the only blocker in the market today that
prevents accidental writes to Hard Drives combining so many
interfaces in one single device. As stand alone or in-Bay, the
Super DriveLock supports IDE 133 drives, SATA II drives with
3Gbit/sec and USB 2.0 storage with 480 Mbit/sec.
.:
Multi Media Write-Protect Support:Built-in
USB 2.0, P-ATA and S-ATA interfaces provide native
write protect support for USB, P-ATA, and S-ATA devices.
Supports 3.3v devices. .: High Speed Operation: Transfer
rates can exceed 3.5GB/min
.: Multiple O/S Host Support: Supports Windows
XP, Windows VISTA and Linux.
.: Upgradeable Firmware: The unit's firmware
can be easily upgraded using the PC's interface.
.: Multiple Host Interface Support: Unit can be
connected to the PC or Notebook using multiple interfaces such
as native S-ATA port, eSATA controllers, eSATA CardBus adapters.
.: Portable: Can be used as a portable device
or mounted in a PC available drive bay.
.: HPA/DCO Support: Detects HPA and DCO areas
.: 3.3v Device Support: Provides output for
devices which require 3.3v for operation.
.: Status leds: 4 leds; IDE drive detected,
SATA drive detected, USB device detected
.: Status leds: 4 leds; IDE drive detected, SATA drive detected, USB
device detected
Optional
Hardware
.: eSATA
PCI Controller Card: Provides
a “hot swap” eSATA interface to connect the Super DriveLock
with the PC.Installs
in a PC’s available PCI Slot. .:In-Bay
Drive Tray and Cooling Fans: The "In-Bay Drive Tray" is designed
for the use with the Super DriveLock and Super DrivePort when
the devices are mounted in an available PC drive bay. Cooling
fans are provided to keep the drives operating at proper
temperatures.
Specification
Super
DriveLock eSATA PCI Express Kit
Each kit includes:
(1) Super DriveLock Unit (1) External USB Device Data Cable (1) S-ATA Data/Power Cable (1) 8" P-ATA Power Cable (1) 6" S-ATA 3.3v/5v Power Cable (1) 6" S-ATA Data Cable (1) 5" P-ATA Data Cable (1) eSATA to S-ATA Data Cable (1) USB A to A F/W Upgrade Data Cable (1) eSATA to eSATA Data Cable (1) 36" P-ATA Power Cable (1) 18" P-ATA Data Cable (1) External Power Supply (1) USB to S-ATA Adpater (1) eSATA PCI Express Controller Card (1) Hard Case Warranty Documents
Super DriveLock unit specifications:
.: Maximum Possible Power: 9 watts
typical operating ( not including hard disk) .: Stand by Power: 5 watts .: Supply Voltage (DC IN): +VDC @ 2A,
+12VDC @ 2A ( includes budget for hard disk) .: Output voltage (DC OUT): +5VCD
@ 1A, +12VDC @ 1A .: Dimensions: 5.75 in. (L) x 3.25 in. (W)
x 1.125 in. (H) .: Weight: 1 lb .: Operating temperature range: 0 to 55 degrees
C (no air flow) .: Storage temperature range: -40 to 70 degrees
C .: Relative humidity: Up to 90% (non
condensing)
Compatibility
..:
SATA Devices:SATA 150 or SATA 300 hard disk devices
.: IDE Devices: Supports the USB 2.0 or FireWire 1394B
specifications for High Speed operation.
.: Hot Swap Capability: Parallel ATA hard disk devices with LBA
( Logical Block Addressing) support
.: USB Devices: High speed 2.0 or USB 1.1
.: Host Interface: SATA, USB 2.0
.: Host O/S: Windows XP, 2000/VISTA, Macintosh OS, Solaris,
Linux
