Since
some hard drives, when attached to the SDL, will not be
recognized when connected to native SATA ports on some PC’s,
ICS recommends the use of the E-SATA controller card to ensure
100% compatibility with both the PC and the drive connected to
the SDL. Besides guaranteed drive detection the E-SATA
controller supports “hot swap”.

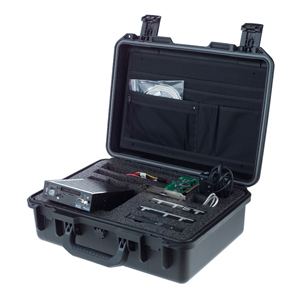

The Super DriveLock eSATA PCI Kit includes the basic Super
DriveLock Without SCSI Kit as well as an external Power
supply, USB-to-S-ATA Adapter, eSATA PCI controller Card and a
Hard Case.
Prices in $ are for
purchase and delivery within the USA only.
For international sales please
contact our Distributors world wide and they will be happy to
quote and support your ICS products.
The
Super DriveLock is the only blocker in the market today that
prevents accidental writes to Hard Drives combining many
interfaces in one single device. As stand alone or in-Bay, the
Super DriveLock supports IDE 133 drives, SATA II drives with
3Gbit/sec and USB 2.0 storage with 480 Mbit/sec.
..:
Multi Media Write-Protect Support:Built-in
USB 2.0, P-ATA and S-ATA and interfaces provide native
write protect support for USB, P-ATA, and S-ATA devices. Supports
3.3v devices.
.: High Speed Operation: Transfer rates can exceed
3.5GB/min
.: Multiple O/S Host Support: Supports Windows XP, Windows VISTA
and Linux.
.: Upgradeable Firmware: The unit's firmware can be easily
upgraded using the PC's interface.
.: Multiple Host Interface Support: Unit can be connected to the
PC or Notebook using multiple interfaces such as native S-ATA
port, eSATA controllers, eSATA CardBus adapters.
.: Portable: Can be used as a portable device or mounted in a PC
available drive bay.
.: HPA/DCO Support: Detects HPA and DCO areas
.: 3.3v Device Support: Provides output for devices which
require 3.3v for operation.
.: Status leds: 4 leds; IDE drive detected, SATA drive detected, USB
device detected
Optional
Hardware
..: eSATA
PCI-EXP Controller Card:Provides a “hot swap” eSATA interface to connect the Super
DriveLock with the PC.Installs
in a PC’s available Express Slot. .: In-Bay
Drive Tray and Cooling Fans:
The "In-Bay Drive Tray" is designed for the use
with the Super DriveLock and Super DrivePort when the devices
are mounted in an available PC drive bay. Cooling fans are
provided to keep the drives operating at proper temperatures.
Specification
Super
DriveLock eSATA PCI Kit
Each
kit includes:
(1) Super DriveLock Unit (1) External USB Device Data Cable (1) S-ATA Data/Power Cable (1) 8" P-ATA Power Cable (1) 6" S-ATA 3.3v/5v Power Cable (1) 6" S-ATA Data Cable (1) 5" P-ATA Data Cable (1) eSATA to S-ATA Data Cable (1) USB A to A F/W Upgrade Data Cable (1) eSATA to eSATA Data Cable (1) 36" P-ATA Power Cable (1) 18" P-ATA Data Cable (1) External Power Supply (1) USB to S-ATA Adapter (1) eSATA PCI Controller Card (1) Hard Case Warranty Documents
Super DriveLock unit sprecifications:
.: Maximum Possible Power: 9 watts
typical operating ( not including hard disk) .: Stand by Power: 5 watts .: Supply Voltage (DC IN): +VDC @ 2A,
+12VDC @ 2A ( includes budget for hard disk) .: Output voltage (DC OUT): +5VCD
@ 1A, +12VDC @ 1A .: Dimensions: 5.75 in. (L) x 3.25 in. (W)
x 1.125 in. (H) .: Weight: 1 lb .: Operating temperature range: 0 to 55 degrees
C (no air flow) .: Storage temperature range: -40 to 70 degrees
C .: Relative humidity: Up to 90% (non
condensing)
Compatibility
.:
SATA Devices:SATA 150 or SATA 300 hard disk devices
.: IDE Devices: Supports the USB 2.0 or
FireWire 1394B specifications for High Speed operation.
.: Hot Swap Capability: Parallel ATA hard disk
devices with LBA ( Logical Block Addressing) support
.: USB Devices: High speed 2.0 or USB 1.1
.: Host Interface: SATA, USB 2.0
.: Host O/S: Windows XP, 2000/VISTA, Macintosh
OS, Solaris, Linux
