Since some hard drives, when attached to the SDL, will not be recognized when connected to native SATA ports on some PC’s, ICS recommends the use of the E-SATA controller card to ensure 100% compatibility with both the PC and the drive connected to the SDL. Besides guaranteed drive detection the E-SATA controller supports “hot swap”.

eSATA Connection to your PC or NoteBook!
New Super DriveLock provides the “all in one” write-protect solution for today’s most common interface technologies including P-ATA, S-ATA and USB.

Price: $800.00  QTY
Product Number: F.GR-0028-900A

Prices in $ are for purchase and delivery within the USA only.

For international sales please contact our Distributors world wide and they will be happy to quote and support your ICS products.

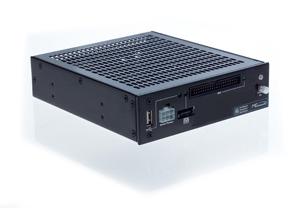

The Super DriveLock is the only blocker in the market today that prevents accidental writes to Hard Drives combining many interfaces in one single device. As stand alone or in-Bay, the Super DriveLock supports IDE 133 drives, SATA II drives with 3Gbit/sec and USB 2.0 storage with 480 Mbit/sec.

.: Multi Media Write-Protect Support: Built-in USB 2.0, P-ATA and S-ATA interfaces provide native write protect support for USB, P-ATA and S-ATA devices.  Supports 3.3v devices.

.: High Speed Operation: Transfer rates can exceed 3.5GB/min

.: Multiple O/S Host Support: Supports Windows XP, Windows VISTA and Linux.

.: Upgradeable Firmware: The unit's firmware can be easily upgraded using the PC's interface.

.: Multiple Host Interface Support: Unit can be connected to the PC or Notebook using multiple interfaces such as native S-ATA port, eSATA controllers, eSATA CardBus adapters.

.: Portable: Can be used as a portable device or mounted in a PC available drive bay.

.: HPA/DCO Support: Detects HPA and DCO areas

.: 3.3v Device Support: Provides output for devices which require 3.3v for operation.

.: Status leds: 4 leds; IDE drive detected, SATA drive detected,  USB device detected

-----------------------------------------------------------------------------------------------------------------

Software :

-----------------------------------------------------------------------------------------------------------------

Optional Hardware

.: eSATA PCI Controller Card: Provides a “hot swap” eSATA interface to connect the Super DriveLock with the PC.  Installs in a PC’s available PCI Slot.
.: eSATA PCI-EXP Controller Card:Provides a “hot swap” eSATA interface to connect the Super DriveLock with the PC.  Installs in a PC’s available Express Slot.
.: Power Supply + USB to SATA Adapters:The Power Supply provides external power for the Super DriveLock device, allowing the SDL to be used as a portable device. The USB to SATA adpater can used to connect the SDL to the PC or Notebook using the USB interface.
.: Super DriveLock Hard Case:Provides a portable carry case for the Super DriveLock device.
.: In-Bay Drive Tray & Cooling Fans: Designed for the use with the Super DriveLock and Super DrivePort when the devices are mounted in an available PC drive bay. Cooling fans are provided to keep the drives cool.

-----------------------------------------------------------------------------------------------------------------

Specifications

Super DriveLock  Basic Kit:

Each Basic Unit Kit includes:

(1) Super DriveLock Unit
(1) External USB Device Data Cable
(1) S-ATA Data/Power Cable
(1) 8" P-ATA Power Cable
(1) 6" S-ATA 3.3v/5v Power Cable
(1) 6" S-ATA Data Cable
(1) 5" P-ATA Data Cable
(1) eSATA to S-ATA Data Cable
(1) USB A to A F/W Upgrade Data Cable
(1) eSATA to eSATA Data Cable
(1) 36" P-ATA Power Cable
(1) 18" P-ATA Data Cable
Warranty Documents

Super DriveLock Unit's specifications:

.: Maximum Possible Power: 9 watts typical operating ( not including hard disk)
.: Stand by Power: 5 watts
.: Supply Voltage (DC IN): +VDC @ 2A, +12VDC @ 2A ( includes budget for hard disk)
.: Output voltage (DC OUT): +5VCD @ 1A, +12VDC @ 1A
.: Dimensions: 5.75 in. (L) x 3.25 in. (W) x 1.125 in. (H)
.: Weight: 1 lb
.: Operating temperature range: 0 to 55 degrees C (no air flow)
.: Storage temperature range: -40 to 70 degrees C
.: Relative humidity: Up to 90% (non condensing)

-----------------------------------------------------------------------------------------------------------------

Compatibility

.: SATA Devices: SATA 150 or SATA 300 hard disk devices

.: IDE Devices: Supports the USB 2.0 or FireWire 1394B specifications for High Speed operation.

.: Hot Swap Capability: Parallel ATA hard disk devices with LBA ( Logical Block Addressing) support

.: USB Devices: High speed 2.0 or USB 1.1

.: Host Interface: SATA, USB 2.0

.: Host O/S: Windows XP, 2000/VISTA, Macintosh OS, Solaris, Linux
