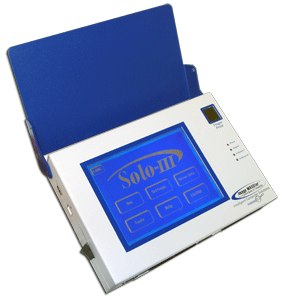

Image MASSter Solo-3 Forensic is a complete, inclusive High Speed Data Acquisition Tool that integrates all the latest advanced features in data imaging. It is capable of capturing data from IDE and laptop drives, Serial ATA and SCSI drives as well as Flash Cards and with the integrated Link MASSter Option also unopened computers through both FireWire and USB2 ports. The suspect’s hard drive is write protected and you can copy data to 2 evidence hard drives simultaneously.

Click Here for Video

Designed exclusively for Forensic data acquisition, the ImageMASSter Solo-3 Forensic data imaging tool is a light weight, portable hand-held device that can acquire data to one or two evidence drives at speeds exceeding 3GB/Min.

Price: $1,999.00  QTY
Product Number: F.GR-7400-000C

Prices in $ are for purchase and delivery within the USA only.

For international sales please contact our Distributors world wide and they will be happy to quote and support your ICS products.

Suspect’s data captured at speeds exceeding three gigabytes per minute can be hashed and verified to comply with the highest standards of Computer Forensic Regulations. Using this advanced data imaging tool’s on the fly hashing capabilities, the acquired data can be guaranteed to be an exact replica of the suspect’s data without modification, re-arrangement or corruption. The suspect’s acquired data can be transferred using the unit’s direct drive to drive interface or using the unit’s external Firewire/USB interface to acquire data from a suspect’s unopened computer. The IM Solo-3 Forensic duplicator supports IDE, SATA and SCSI hard disk drives, including ATA solid state devices. The unit’s advanced touch screen user-interface provides ease of use. IM Solo-3 Forensic can capture data to two hard drives simultaneously without a speed reduction. Capture from SCSI to SCSI drives with the additional purchase of the FAST SCSI option

.: MD5/SHA-1/SHA-2 and CRC32 Hashing: Simultaneous CRC32 and MD5/SHA-1/SHA-2* hashing generation can be performed during the data capture.
.: Touch Screen User Interface: The unit’s advanced Touch Screen User Interface and programmed keyboard provides for ease of use.
.: High Speed Operation: Data acquired at transfer rates that exceed 3GB/min.
.: Built in Write Protection: Suspect’s data is protected with built-in write protection.
.: Built in FireWire 1394B and USB 2.0 Interface: Capture data from a Suspect’s unopened Notebook or PC. Also, safely preview the Suspect’s drive while connected to the IM Solo-3's write protected port.
.: Captures to Two Evidence Drives Simultaneously: Capture data to two hard drives simultaneously at high speeds, without speed reduction. IDE, SATA and SCSI drives can be captured.
.: Multiple Capture Methods: Acquire data in a Forensic sector-by-sector format method by using a segmented file format method (Linux-DD) which allows seizing multiple images to one Evidence drive.
.: WipeOut: Sanitize drives and erase data at speeds greater than 3GB/min.
.: Audit Trail and Logs: Detail operational event log information can be printed or saved to Compact Flash.
.: Multiple Media Support: Supports data transfer between P-ATA, S-ATA and SCSI hard disk drives. Also supports imaging data from flash media devices and Notebook drives.
.: Upgradable: Software and Firmware upgrades performed using the supplied Compact Flash Card.
.:eSATA: Supports eSATA drives with the purchase of a SATA-to-eSATA data cable

* Hashing can be performed with MD5, SHA-1 or SHA-2 but not simultaneously.

-----------------------------------------------------------------------------------------------------------------

Software :

The following Software features come standard with the IM Solo-3 Forensic unit:
.: Device Configuration Overlay (DCO) Option: DCO can be used to hide and protect a portion of the drive’s area from the operating system and file system.  If DCO is detected on a Suspect’s drive, the IM Solo-3 Forensic's seizure operation will capture the DCO hidden sectors.
.: Host Protected Area (HPA) Option: An HPA area may exist on a drive, hiding a certain portion of the drive’s contents from the operating system and file system.  If an HPA area exists on a Suspect’s drive, the IM Solo-3 Forensic's seizure operation will detect and capture data from the HPA area.
.: WipeOut DoD Option: WipeOut was designed to meet the U.S. Department of Defense specification DOD 5220-22M regarding the sanitization of hard disk drive data.  Three iterations are performed to completely erase data and the contents of a hard disk drive.  Each iteration makes two write passes over the entire drive.
.: WipeOut Fast Option: The WipeOut Fast option provides a quick non-DoD method of sanitizing a drive of all previously stored data.
.: LinkMASSter Application: The LinkMASSter application, combined with the unit’s built-in FireWire/USB interface, provides a fast and effective solution to acquire data from a Suspect’s unopened PC or Notebook to an Evidence drive connected on the IM Solo-3 Forensic unit.
.: Linux-DD Capture Option: The LinuxDD Capture option captures data as individual “LinuxDD” segmented files.  This option also allows multiple data capture to be performed using the same Evidence drive.

-----------------------------------------------------------------------------------------------------------------

Optional Software

.: Solo 3 Forensic Mac Option: the software allows the user to copy unopened Mac's computer, sector bysector, with the highest standards of verifications - MD5/SHA-1/SHA-2.

-----------------------------------------------------------------------------------------------------------------------

Optional Hardware

.: Fast SCSI Option (factory installed at time of purchase of Solo 3): Allows you to capture directly from one SCSI drive to another SCSI drive at transfer rates exceeding 4GB per minute. Optional Adapters will also allow capture from SCSI to P-ATA or S-ATA drives.
.: Fast SCSI Option (purchased as upgrade after delivery of Solo 3): Allows you to capture directly from one SCSI drive to another SCSI drive at transfer rates exceeding 4GB per minute. Optional Adapters will also allow capture from SCSI to P-ATA or S-ATA drives.
.: SCSI to SATA Adapter: Allows you - with Fast SCSI option installed - to capture directly from one SCSI drive to another SATA drive.
.: SCSI to IDE(P-ATA) Adapter: Allows you - with Fast SCSI option installed - to capture directly from one SCSI drive to another IDE drive.
.: Notebook Adapters: ICS proprietary Notebook drive adapters enables the IM Solo-3 Forensic to acquire data off a variety of Notebook models.
.: DVD R/W DRIVE: The DVD R/W Drive is used for archiving data to DVD recordable media. The media supported includes DVD -RW, DVD +RW, DVD +R, DVD –R, and CD-RW media.
.: CF Adapter: The Flash adapter was designed to support 50-pin micro-drive devices.
.: Customized Hard Case: The ruggedized case is airtight and waterproof to provide an organized and protective transport solution for your IM Solo-3 Forensic unit.
.: Hard Drive Coolers: Protect hard drives from EMI noise and reduce the hard drive heat.
.: S-ATA 3.3V Device Support Kit: The ICS S-ATA 3.3V Device Support Kit provides IM Solo-3 support for 3.3v devices which use the S-ATA interface

-----------------------------------------------------------------------------------------------------------------

Specifications

.: Supply Voltage: 90 - 230V / 50 - 60 Hz

.: Power Consumption: 10W without drives

.: Operating Temperature: 5 degrees - 55 degrees C

.: Relative Humidity: 20% - 60% non-condensing

.: Net Weight: 2.2 lbs

.: Overall Dimensions: 8.3" x 5.8" x 2.2"


-----------------------------------------------------------------------------------------------------------------
