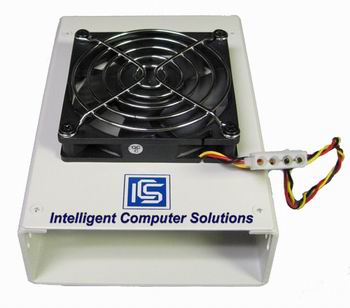

Hard Drive EMI Shield Cooler





Hard Drive EMI Shield Cooler protects hard drives from EMI noise, and at the same time reduces the heat generated by the hard drives.

Price: $49.00  QTY
Product Number: F.GR-0020-000a

Prices in $ are for purchase and delivery within the USA only.

For international sales please contact our Distributors world wide and they will be happy to quote and support your ICS products.

Hard drives are sometimes used and operated outside their native originally intended environments. For instance, when they are placed outside a computer case they can be exposed to EMI interfaces (electrical noise), and because of an inadequate cooling mechanism, the drive’s operating temperature can rise. Today’s high performance hard drives are more susceptible to EMI (electrical noise) and with high spinning motors (15,000 revolutions per minute) they can generate much more heat than the older drives. So to ensure their proper operation, ICS has introduced a new accessory that addresses the two concerns – electrical noise and heat. The new accessory is a Hard Drive EMI Shield Cooler. The hard drive slides into the metal sleeves without any need for mounting screws. Coupled with a powerful fan, on top of the device, the heat is dissipated and maintained at a comfortable operating temperature level, in which the hard drives can operate optimally. Additionally the metal sleeves, unlike inferior plastic devices, function as a shield against the EMI noise, to assure reliable operation in a safe environment.

Features:

.: Heat Reducing: the hard drive cooler, made of metal, dissipates the hard drive's heat with its powerful fan.

.: Noise blocking: The metal sleeve blocks EMI noise and assure reliable operation in safe environment.

-----------------------------------------------------------------------------------------------------------------

Software :

-----------------------------------------------------------------------------------------------------------------

Optional Software

-----------------------------------------------------------------------------------------------------------------------

Optional Hardware

-----------------------------------------------------------------------------------------------------------------

Specifications

Unit Specs:

.: Overall Dimensions: 6.5" x 4.25" x 1.6"

.: Net Wight: 0.8 lbs

Fan Specs:

.: Fan Dimensions: 80 x 80 x 15 mm

.: Rated Voltage: 12 VDC

.: Rated Current: 0.16A (max)

.: Power Input: 1.92W

.: Fan Speed: 2500 RPM

.: Max Air Flow: 28.49 CFM

.: Air Pressure: 2.11mm - H2O

.: Noise: <23 dBA


-----------------------------------------------------------------------------------------------------------------
