Features:
.: Easy
way to protect digital evidence: DiskCypher
provides an easy way to protect digital evidence by encrypting
the evidence hard drive during the acquisition process.
.: Safeguards critical data during transportation: Safeguards
the results of investigations that must be transported to other
required parties (i.e. Attorneys as well as other forensic
investigators)
.: AES 192 bit Algorithm: DiskCypher
utilizes the National Institute of Standards and Technology (NIST)
AES 192 bit approved encryption at SATA speeds.
.: SATA connection: Connects
through a SATA connector to Host/PC and with a second SATA
connector to an "evidence" hard drive.
.: No external power supply needed: The
unit utilizes power from the SATA connector, it does not require
an external power supply.
.:
Corporate Key/Default Key: If
required, DiskCypher can provide an optional recovery key scheme
that allows the use of a Corporate Key or Default Key, as a
disaster recovery option to retrieve the encrypted data in case
of human error (i.e. loss of key or use of wrong key)
.: Encryption
Verify Feature: When
used with the IM Solo-3, the user has the capability to utilize
the Encryption Verify Feature. This feature allows the user to
verify that the digital data was encrypted with the right key at
the time of data acquisition and encryption minimizing human
error.
.:
Can be used with any regular PC or other data collection devices: Depending
on the security requirements, DiskCypher can also work
with regular PCs or other data collection devices to encrypt
either Linux DD images or complete 100% images of hard drives.
.:
External Key/Key Dongle: User
has the option to connect an "External Key/Key Dongle"
device directly to the DiskCypher to conveniently
encrypt/decrypt the digital evidence hard drive.
.:
Highly transportable: The
DiskCypher is a compact size device.
.:
Affordable: Economical
and cost effective.
-----------------------------------------------------------------------------------------------------------------
Software
:
-----------------------------------------------------------------------------------------------------------------
Optional
Hardware
Key
Dongle:Key
Dongles are used in combination with the Key Loader System to
hold the final key code. It allows user to Encrypt/Decrypt the
hard drive evidence.
DiskCypher
Default Key/Recovery Key
Unique to DiskCypher
when used with IM Solo-3 the Default Key is a paid option with
activation key that is used at the time of encryption. The
recovery key is supplied by ICS
DiskCypher
Corporate Key
Unique to DiskCypher
when used with IM Solo-3 the Corporate Key is a paid option with
activation key that is used at the time of encryption.
eSATA
PCI Controller Card: Provides a "hot
swap" eSATA interface to connect the DriskCypher with the
PC. Installs in a PC's available Express Slot.
eSATA
PCI-EXP Controller Card: Provides a
"hot swap" e SATA interface to connect the DiskCypher
with the PC. Installs in a PC's available Express Card.
e-SATA
Bundle Solution Kit:
This bundle provides a way to connect an External e-SATA
drive with the DiskCypher. USB connection to a PC and
External Power Supply for the DiskCypher can be achieved by
purchasing the SATA-to-USB Bridge + External Supply + SATA
Power Converter (Included with the Lab kit).
e-SATA
to SATA Cable: Cable to be used with
the DiskCypher e-SATA Solution with e-SATA connection to a PC
SATA
Male-to-Male Converter Cable: Converter to
be used for the DiskCypher e-SATA solution with e-SATA
connection to PC. Included in the e-SATA Solution bundle.
SATA-to-USB
Bridge + External Power Supply + SATA Power Converter:
Provides external power for the DiskCypher unit when using the
e-SATA Solution with USB Bridge Connection to a PC.
-----------------------------------------------------------------------------------------------------------------
Specifications
-----------------------------------------------------------------------------------------------------------------

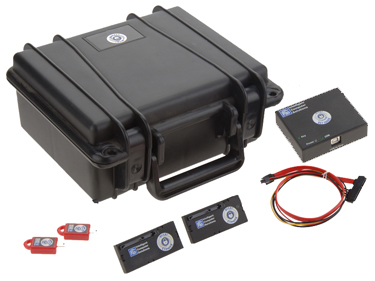

KIT
Content
2
DiskCypher units
2 Key Dongles
1 KeyLoader
1 SATA Data and Power
Cable
CF (Encryption
Utility)
1 Hard Case
|
